CNC Aluminum Profiles Bending Machine
Related Products

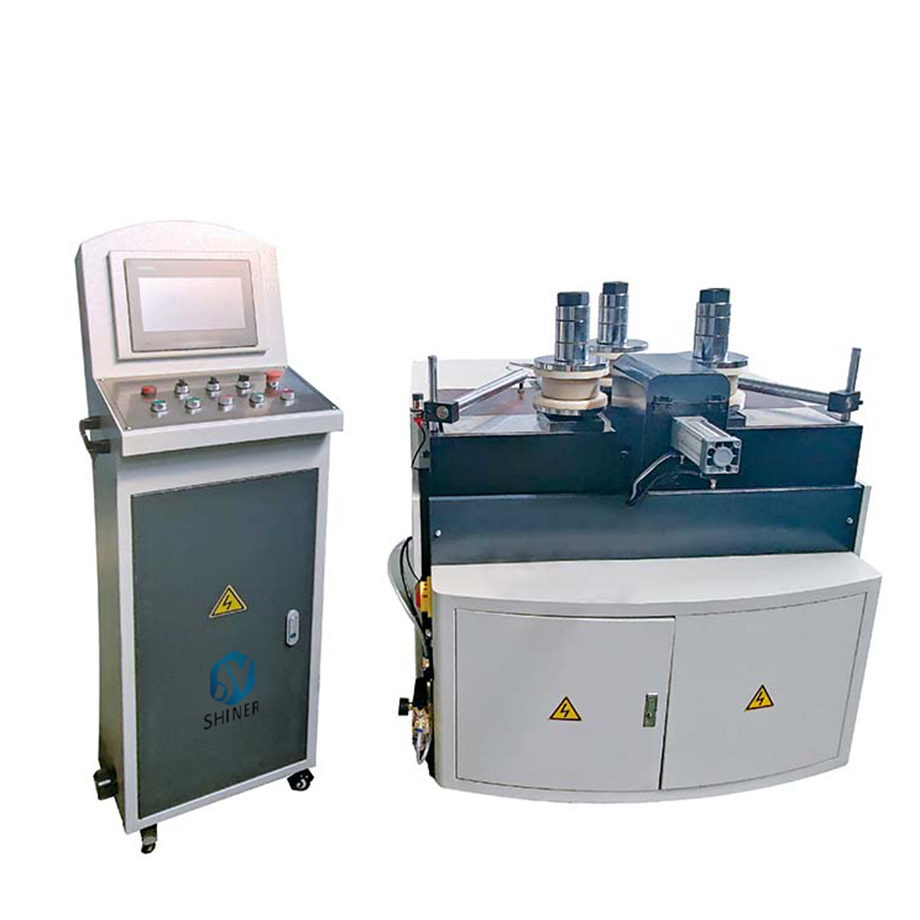

CNC Aluminum Profile Bending Machine LWYJ-20T
Features:
1. The machine is mainly used for bending metal materials such as iron, copper, aluminum and special-shaped material.
2. It's an ideal equipment of bending process for furniture manufacturers, wrought iron engineering manufacturers, aluminum doors and windows manufacturers, decorative steel structure enterprise.
3. The machine adopts CNC controller, which makes the machine features easy handling and high precision.
4. Using CNC software, makes the bending operation very simple.
5. Can bend many shapes such as C shape, U shape, whole circle and spring etc.
6. Capable of detecting material rebound data, eliminate rebound.
Parameters:
Input voltage | 380V/50Hz(As Required) |
Input power | 5.2Kw |
Min. diameter of bending | 180mm |
Max. diameter of rolls | 200mm |
Pressure | 150/200/400KN |
Positioning precision | 0.01mm |
Top roll stroke | 280mm |
Overall dimension | 1400×1500×1600mm |
Frequently Asked Questions
A CNC Aluminum Profile Bending Machine is a specialized equipment used for precisely bending aluminum profiles into specific shapes or angles. It utilizes computer numerical control (CNC) technology, ensuring high precision and repeatability for various bending operations in aluminum fabrication.
The machine works by feeding the aluminum profile into a bending unit, where a set of rollers or dies bend the material into the desired shape. The CNC system controls the bending process, allowing for accurate angles and dimensions based on pre-programmed parameters.
The bending capacity depends on the model and design of the machine. Typically, it can handle profiles up to 200 mm in width and can bend aluminum to angles ranging from 90° to 180° or even custom angles depending on the settings.
