UPVC Window Glazing Bead Cutting Machine
Related Products

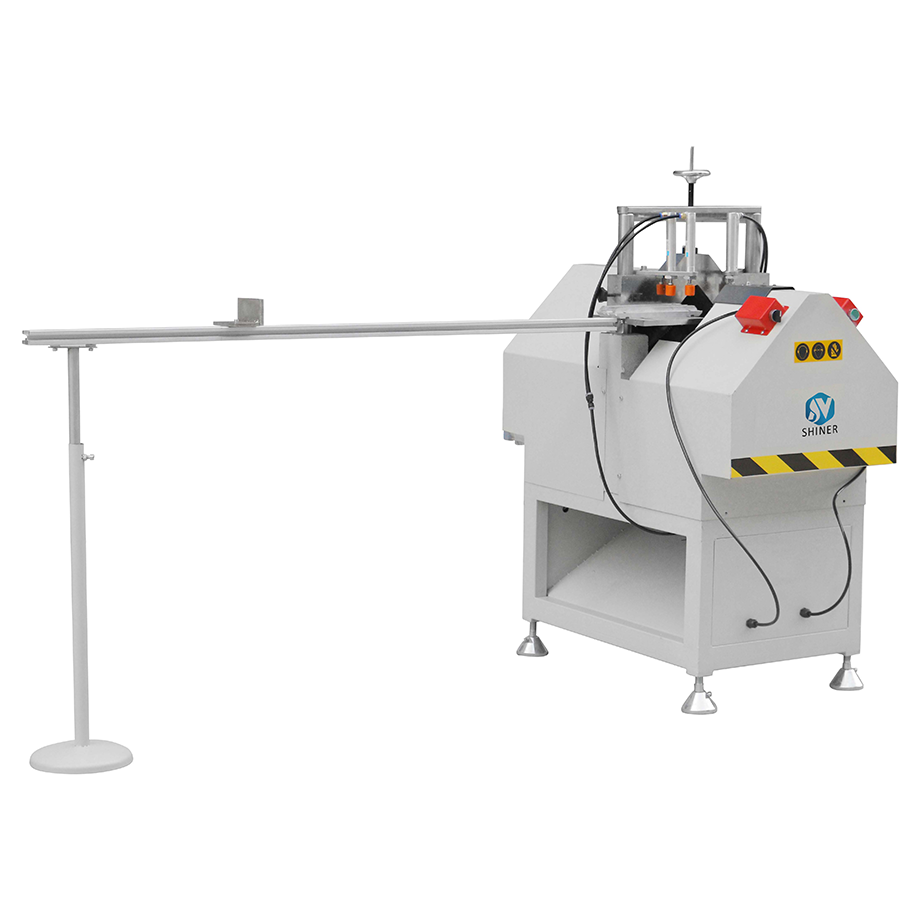

Glazing Bead Cutting Machine SYJW-1800
Features:
1.Used for 45 degree glazing bead profile.
2.Two glazing beads cutting in one time.
3.4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.
4.Vertical clamping device and special designed cutting jig ensure stable positioning.
5.Precise & easy operated measuring table.
Parameters:
Input voltage | 380V/50Hz(As Required) |
Input power | 0.75Kw*2 |
Air pressure | 0.5~0.8Mpa |
Cutting depth | 29mm |
Cutting width | 120mm |
Saw blade diameter | 210mm |
Milling cutter diameter | 135mm |
Overall dimension | 1300*700*1350mm |
Frequently Asked Questions
A uPVC Window Glazing Bead Cutting Machine is a specialized tool used in the manufacturing and fabrication of uPVC windows. It is designed to cut and shape the glazing beads, which are essential components used to hold the glass in the window frame. The machine ensures precise cutting and angles for perfect fitting of the glazing beads.
The primary material used with this machine is uPVC (unplasticized polyvinyl chloride), which is widely used in window frames and glazing beads due to its durability and insulation properties. Some machines can also handle aluminum or wood composite profiles when specifically designed for these materials.
A uPVC window glazing bead cutting machine offers several advantages, including in increased efficiency and accuracy in cutting glazing beads, consistent quality, faster production times, reduced labor costs, the ability to handle various profiles, and precise 45-degree cuts, all contributing to a more streamlined window manufacturing process.
